manual powder coating spray system

Payment Terms: T/T,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: COLO-PGC1
Production Capacity: 500pieces per month
Delivery Date: 3-5days
Raw Material: Others
Extra Services: Painting / Powder Coating
Certification: CE
TYPE: intelligent
Frequency: 50HZ
Gun weight: 500G
Input voltage: 200kv
Maximum output voltage: 0-100KV ( adjustable)
Means of Transport: Ocean,Air
Packing: wood box or carton box
Power: Others
Machine Type: Others
Automation: Manual
Brand Name: COLO
Power range: 200v
Temperature range in use: -10 ℃+50 ℃
Rated output voltage: 24VDC
Maximum output current: 180Ua(max)
Maximum input-air pressure: 10kg/cm2

1,electrostatic powder painting equipment
2,0-100KV

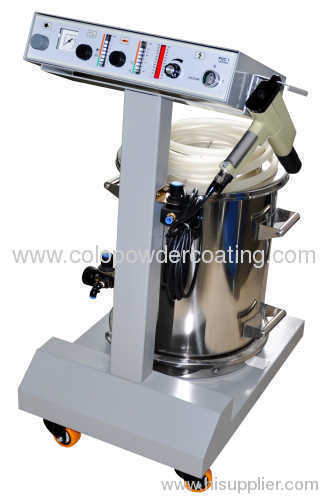

3,PGC1 Control Unit with PG1 powder coating gun
4,provide excellent coat

1, powder coating gun PGC1
2, Professional supplier of powder coating equipment and spare parts for Nordson,wagne

powder coating spare part

PGC1 control unit,interchangeable with Original.use for PG1 manual gun and PG2A automatic gun


Advantage

0-100 Digital Adjustable KV
Fully Adjustable Amperage
PGC1 Control Unit with PG1 powder coating gun
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hopper Feed - 45L

this system is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.



USE FOR PG1 MANUAL GUN AND PG2A AUTOMATIC GUN




Insert sleeve 377724 with different material :Teflon,glass




Manual coating equipment Function description

the powder gun through the powder hose . The powder is electrostatically

charged at the nozzle of the gun. In addition, an electrostatic field is

created between the gun nozzle and the grounded object. The charged

powder spray remains adhered to the surface of the object.

The powder is fluidized by air forced through a porous plastic plate from

below. The powder acquires, thereby, fluid-like characteristics.

The conveying air, supplementary air, and rinsing air are set on the control

Unit

Electrical data
Mains input voltage100-240 VAC
Operating frequency50-60 Hz
Input power50W
Nominal output voltage (to the gun)max. 12 V
Nominal output current (to the gun)max. 1 A

IP54
Ambient temperature range0°C - +40°C (+32°F - +104°F)
Max. operating temperature85°C (+185°F)
ApprovalsCE


Pneumatical data
Compressed air connection1/4" male quick release
Max. input pressure10 bar / 145 psi
Min. input pressure (while unit in operation)6 bar / 87 psi
Max. water vapor content of the compressedair 1.3 g/m³
Max. oil vapor content of the compressed air0.1 mg/m³


Packing Dimensions
Length120CM
Width79CM
Height73CM
Weightapprox. 55kgs


Connection Description
1.1 Air InCompressed air connection (6-10 bar / 87-145 PSI)
2.1 PowerMains cable connection (100-240 VAC)
2.2 GunGun cable connection
1.4
Electrode rinsing air connection
1.3Pict
Supplementary air connection
1.2Pict
Conveying air connection
Grounding connectionPict

Include

A control unit power supply cable

- A air filter

- A air pressure regulator

- A fluidized powder hopper

- A plug-in injector

- An manual powder gun with gun cable, powder

hose, rinsing air hose and standard nozzle set.

- Pneumatic hoses for conveying air (red), supplementary

air (black) and fluidizing air (black)

powder hose

Ground wire


The product can be packed in wooden package or paper package based on your suggestion. Excellent package can avoid the breakage.  About the machine, we usually ship within 7 days after receiving the payment.
