Design basis(user supply)
1. product name: Electrical cabinets and filing cabinets
2. material: Tie-pieces
3. product max size: L500mm*W600mm*H900mm
4. product max weight: ≤30Kg

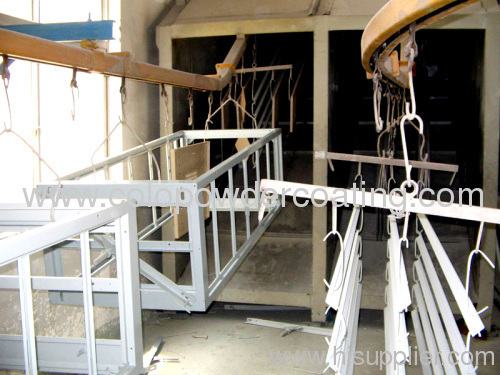

5. Conveyor chain single hanging weight: 20 Kg model:QXG(150)
6. Hanging: one hanger one piece product
7. Crane: 1000mm, a spreader and rotary spreader, hanging from the actual different settings according to the workpiece.
8. Design line speed and adjustable line speed: 1.5m/min (0.3m-3.6m/min)
9.coating area: surface
10. coating : manual powder coating
11. Drying tunnel heating: electric heating
12. Compressed air: the users themselves, freeze-drying, moisture content <1.3g/m3 oil content <1PPM
13. Plant area: see Figure
14. Energy: (1) three-phase four-wire (380V). With ground wire a 2. Compressed air
description and parameters
The comprehensive design reliability, advanced, reasonable and economical considerations, its main structural features:
().Drying tunnel -1pcs (two ends out , the middle separated)
1.Inner size:L8000×W2000×H1700mm,Furnace wallmaterial:t1.0mmHot-rolled plates, furnace wall materials: t1.0mmValencia pressureplate, insulation layer thickness: 100mm thermalinsulation rockwoolspecial extended shaft thermal cycling fan power2.2KW-2 units
2.Return air system
1) The bottom feed, Using a cyclic manner at the bottom, balancing of hot air.
2) wind deflector wind guide, on the floor punching to ensure uniform temperature.
3) circulation fan power: 2.2KW 2 sets
3.Heating system heating power: 60KW
Heating system with scattered fin electric heatingtubes,circulating fan, automatic temperature control probe,electricallyheated heat pipe in the heating chamber is energized by thecirculatingfan sent directly to the inside of the drying tunnel, bycirculatingfans constantly cycle, the oven The internal temperature riseto a settemperature distribution uniform.
Automatic control of temperature and digital display to adjustthetemperature of the drying tunnel. Exhaust gas through the exhaustpipeexclude.
Insulation groups automatically turn off when thetemperaturereaches the upper limit. Temperature limit automaticallyopen. Thecirculating fans qualities insulation, plus the long axis, theeffectiveprotection of the motor. Automatic control box electricalDelixi orChint brand.
