The

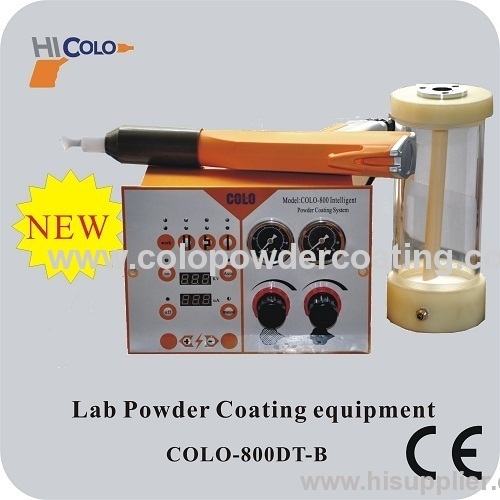

COLO-800 series is intelligent, It is easy tooperate and good for different kinds of shapes. There are three settingmodel, groove, plate and re-coating. Far corners and recessed parts canwell be sprayed, outstanding spraying effect can be obtained forre-coating. Also could adjust the voltage and current according to theshape of workpiece when under the manual model.
Technical Data
Electrical data
Power range 220V
Frequency 50HZ
Temperature range in use -10 ℃+50 ℃
Powder Gun
Gun weight: ……………… 500G
Rated output voltage ……… 24VDC
Input voltage …………… - 200kv
Maximum output current ……… 180Ua(max)
Maximum output voltage………… 0-100KV ( adjustable)
Maximum powder injection :……… 600g/min
Polarity ……………… negative (-)
Pneumatic data
Maximum input-air pressure ………….. 10kg/cm
Optimum input-air pressure…….. 6kg/cm
Minimum input-air pressure …… 4kg/cm
Maximum water vapor content or compressed air ….. 1.4g/N m3
Maximum oil vapor content of compressed air …….. 0.1ppm
Maximum compressed-air consumption……… 13.2 m3/h
