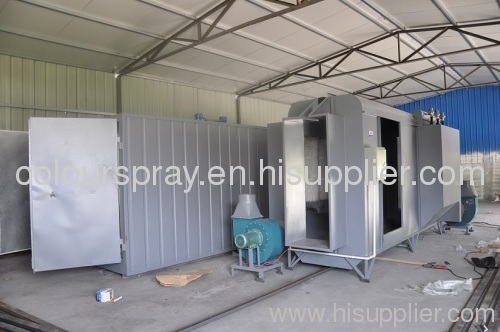

powder Spray booth with very competitive pricing
size L4.6XW1.8XH2.3M


Spray booth using plate assembly welded structure, for dusting recovery operation, so dusting operation has a clean environment.





Powder room top mounting hook for dusting operational use, with dust-proof fluorescent lighting for easy workpiece dusting operation, aesthetic appearance.
Powder room for the formation of the internal structure, so that the powder room cleanup work easier and faster.




spray booth with 2PCS FAN    Recycling fan model (4-72-3.2A-2.2KW)


After a period of work element, the filter surface of the powder piled thick, then the internal pulse cleaning filter device, the compressed air from the inside out instant release, fear of falling powder. Pulse control with manual.



with 325x900mm cartrige fliter 6pcs

Quick release disc filter (put lid), polyester filament nonwoven fabric manufacturing, washable, 5 micron filtration, powder recovery effect is good!


Solenoid valve G 3/4, DC 220V




A) powder spray booth Installation
1 Install the ground should be flat, smooth landing foot machine, ventilator machine feet should be firmly fixed to the ground.
2 spray booth enclosure must be grounded well. Grounding Methods: Ф10 mm round into the ground long 1.5-2m, the gel 10 mm, welding on the terminal, with a 4 mm 2 wire with ground spray booth and the electrostatic generator column connections.
3. Fitted with filters, elastic fit.
4 connected to the gas source into the trachea, close the drain valve.
5 switch box connected to the power supply, connect the power electrostatic generator.
6 Start the exhaust fan button to check the motor rotation is correct.
7 Compressed air must pass air purifier to remove oil and water, the water content of less than 1g/m3.
(Two). Spray debugging
1 should be checked before commissioning power, gas supply is normal.
2 dusting units: Turn exhaust fan, spray plastic powder to filter floating, open pulse valve, gas filter out gassing from strong (sound great).

III. powder coating Procedure
(A). Boot
1 Press the exhaust button (green), dusting chamber filter out the exhaust.
2 Turn on electrostatic generator, the spray operation.
3 Continuous spray about half an hour at a pulse cleaning, maintaining good ventilation filter. In the production process should always observe the instructions of the instrument case, abnormal timely adjustments to ensure spray quality. Spray before the workpiece surface should be required to check the status, so as not to affect the plastic film adhesion.
(B). Shutdown
1 Turn off the exhaust fan, cleaning interior plastic powder coating, site preparation, tooling, cleaning.
2 Turn off the power.


powder coating spray booth Care and maintenance
(1) timely removal of accumulated powder, air purifier and timely discharge of sewage pump tank.
(2) timely recovery filter cleaning and replacement.

The following is spray booth installation diagram:



Into the trachea (air source from Access)




Docking with the fan spray booth



Wrapped with a black rubber, rubber butt joints with glue 502 glue
Connect the wires to follow suit.
Note: The fan blade rotation direction shown by the arrow direction
