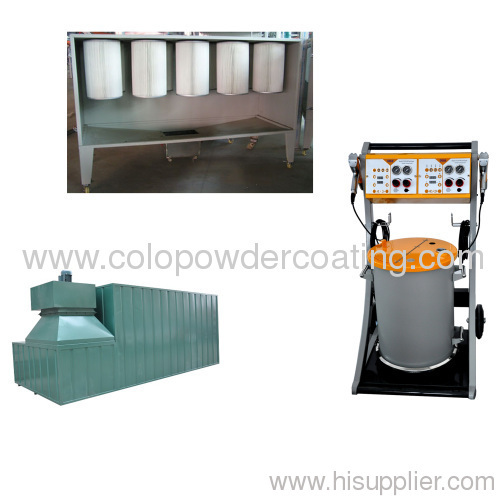

Electrostatic Powder Coating EquipmentBatch Packages,Includes PowderCoating Booth, Electric or Gas Powder Oven, and manual powder coating gun.Wehave the most popular configurations available and you can call us 008613967171593 for special combination you do not see posted.

1,The spray booth specification as follow:

Electrostatic powder spraying booth

Thepowder booth fans draw air through filters and releases it through thetop of the booth. It keeps your shop nice and clean,minimizing powderdust.

Benefits of our powder booth

• Operator Safety

• Environmental compliance

• Production capacity and operational efficiency

• Color changeover

• longer lasting, more durable, quieter

include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.

Data:

One door

Size: W2280mm D1580mm H3000mm / W2380mm D1580mm H3000mm

Body material: δ=1.5mm galvanized plate

Pulse valves and solenoids

Air velocity 0.6m/s

Recycling fan1/set 4-72-3.6A   3.6 KW

Fliter number 5pcs/set Flither

sizeφ325×900 fast-loading

light: 220v 36w 2 pcs

Voltage is 380V /50HZ (could make as you want)

Duringoperation overspray powder accumulates on the cartridge filters. As thecartridge filters load, airflow decreases and the negative pressurerises within the air handler. A timer activates a system of air purgingvalves that clear the cartridge filters of the accumulated powder toensure maximum flitter life.

ThisPowder coating oven used for curing the workpiece which has beenspraying during the powder coating. When a thermoset powder is exposedto elevated temperature, it begins to melt, flows out, and thenchemically reacts to form a higher molecular weight polymer in a network-like structure.

• Structure:consist of Body,insulation, cover, heater. use gas to create the energy ,through the circulating fan ,make the temperature in the oven to rise uniformly. Then make the temperature of workpiece to rise.

built-in track to roll your powder coating racks into the ovens could be ordered together as you required.

3,Manual powder coating system

0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hope Feed - 55L
Because this system is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.

COLO are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens, cartridge type and cyclone recovery systems, spray booth, conveyor systems,  Also we are supplier of powder coating, powder filters, powdercoating machine,powder coating equipment,powder coattinggun,,Reciprocator, painting guns, pumps and their equipments.
