powder coat guns on sale

Price: 800.0~1500.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: COLO-800DT-B
Production Capacity: 200Piece/Pieces Per Month
Delivery Date: 2-5 days
Machine Type: Coating Machine
type: Coating Spray Gun
coating: powder coating
Material / Metal: Steel,all metallic surface
Power(W): 50w
After-sales Service Provided: Overseas service center ava...
Means of Transport: Ocean,Land,Air
Packing: wood box or carton box
Product Type: Paint
Brand Name: COLO
weight: 55KGS
Dimension(L*W*H): 80CM*62CM*58CM
Voltage: 220v/110v
Certification: CE/ISO
Warranty: 1 YEAR

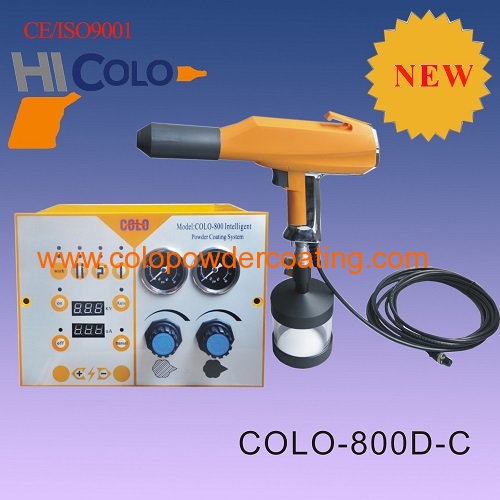

Manual Paint Spray Gun
1,0-100KV Paint Spray Gun
2,Pulse Paint Spray Gun
3,small Paint Spray Gun
4,CE

Paint Spray Gun,Electrostatic powder coating gun ,Manual powder coating gun,this small powder coating machine designedfor small sample testing or powder manufacturers, the Cup Unitincorporates the application cup to the gun. The cup is self-fluidizingand is easy to clean, making color changes fast and easy.

Technical data
Electrical data
Mains input voltage100-240 VAC
Operating frequency50-60 Hz
Input power50W
Nominal output voltage (to the gun)max. 12 V
Nominal output current (to the gun)max. 1 A
IP54
Ambient temperature range0°C - +40°C (+32°F - +104°F)
Max. operating temperature85°C (+185°F)
ApprovalsCE
Pneumatical data
Compressed air connection1/4" male quick release
Max. input pressure10 bar / 145 psi
Min. input pressure (while unit in operation)6 bar / 87 psi
Max. water vapor content of the compressedair 1.3 g/m³
Max. oil vapor content of the compressed air0.1 mg/m³
Packing Dimensions
Length120CM
Width79CM
Height73CM
Weightapprox. 55kgs
Connection Description
1.1 Air InCompressed air connection (6-10 bar / 87-145 PSI)
2.1 PowerMains cable connection (100-240 VAC)
2.2 GunGun cable connection
1.4
Electrode rinsing air connection
1.3Pict
Supplementary air connection
1.2Pict
Conveying air connection
Grounding connectionPict
Designedfor small sample testing or powder manufacturers, the Cup Unitincorporates the application cup to the gun. The cup is self-fluidizingand is easy to clean, making color changes fast and easy.
800 Series Features and Specifications:
0-100 Digital Adjustable KV
Fully Adjustable Amperage
Control unit With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Able to cut Pulse Power on and off
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Canister Feed - CUP
it is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.


Designedfor small sample testing or powder manufacturers, the Cup Unitincorporates the application cup to the gun. The cup is self-fluidizingand is easy to clean, making color changes fast and easy.
Manual coating equipment Function description
the powder gun through the powder hose . The powder is electrostatically
charged at the nozzle of the gun. In addition, an electrostatic field is
created between the gun nozzle and the grounded object. The charged
powder spray remains adhered to the surface of the object.
The powder is fluidized by air forced through a porous plastic plate from
below. The powder acquires, thereby, fluid-like characteristics.
The conveying air, supplementary air, and rinsing air are set on the control
Unit
Include
A control unit power supply cable
- A air filter
- A fluidized powder hopper
- An manual cup powder gun with gun cable, powder
hose, rinsing air hose and standard nozzle set.
- Pneumatic hoses for conveying air (red), supplementary
air (black) and fluidizing air (black)
Ground wire
AIR BLOW GUN
Electrical data
Mains input voltage: 220V/110V
Operating frequency: 50Hz /60Hz
Powder: 50W
Output voltage (to the gun): 0-100KV ( adjustable)
Maximum output current (to the gun): 180UA(max)
Protection type: IP54
Approvals: CE Certification
Pneumatical data
Input pressure: Min. 6 bar(87PSI)/max. 10 bar(145PSI)
Recommended input pressure: 7 bar(101.5PSI)
Max. Water vapor content of the compressed
Air 1.3 G/m 3;
Max. Oil vapor content of the compressed air 0.1 mg/m3;
Packing Dimensions
Length: 44cm
Width: 44cm
Height: 56cm
Weight: 12 kgs.
Theprocess of the coating is like this :the powder is fluidized in thepowder hopper. The injectors transport the powder through the hoses tothe guns . The guns spray a powder/air mixture onto the workpieces.
Powdercoating is a type of coating that is applied as a free-flowing, drypowder. The main difference between a conventional liquid paint and apowder coating is that the powder coating does not require a solventto keep the binder and filler parts in a liquid suspension form. Thecoating is typically applied electrostatically and is then cured underheat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer.It is usually used to create a hard finish that is tougher thanconventional paint. Powder coating is mainly used for coating of metals, such as "whiteware," aluminium extrusions, and automobile and bicycle parts. Newer technologies allow other materials, such as MDF (medium-density fibreboard), to be powder coated using different methods.
The powder coating process involves three basic steps:
  1. Part preparation or the pre-treatment
  2. The powder application
  3. Curing
Electrostatic powder coating manufacture in China,Electrostatic Powder Coating Machine,Powderspraying gun, powder spray gun, metallic powder coating system,electrostatic powder spraying unit, electrostatic powder spraying.electrostatic spray application system,Surface Finishing Equipment.
COLOPowder Coating Systems is a top supplier of powder coating systems andpowder coating equipment including automated equipment, spray booths andspare parts for itw gema , wagner , nodrson , kci famous brand inchina.
