dual gun control system

Price: 800.0~1500.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: colo-800D-2
Production Capacity: 200Piece/Pieces Per Month
Delivery Date: 2-5 days
Machine Type: Coating Machine
Operating frequency: 50-60 Hz
coating: powder coating
Material / Metal: Steel,all metallic surface
Power(W): 50w
After-sales Service Provided: Overseas service center ava...
Means of Transport: Ocean,Land,Air
Packing: wood box or carton box
Product Type: Paint
Brand Name: COLO
weight: 66KGS
Dimension(L*W*H): 120*79*73CM
Voltage: 220v/110v
Certification: CE/ISO
Warranty: 1 YEAR

1. intelligent one-touch button
2. high efficiency/energy saving

Intelligent Powder Coating Machine

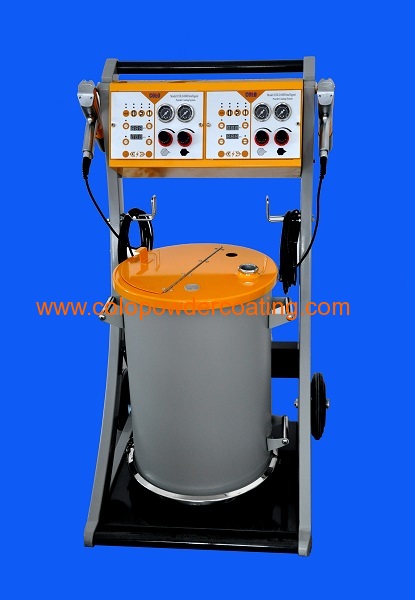

dual gun control system
double systems electrostatic powder spray gun
1. intelligent one-touch button
2. high efficiency/energy saving
double systems electrostatic powder spray gun - colo-800D-2
Itis with one-touch intelligent operation button, Woking good in flatparts, complicated parts, recoat parts, It deliverys smooth finisheseven with metallic powder. Powder spraying equipment(two controlmodules, two powder gun and one powder hopper)
Powder gun: 2PCS
Host: 2 PCS
Powder pump: 2PCS
Powder container: 1PC
Trolley: 1PC
Oil-water separator: 1PC
Air pressure regulating valve: 1 PC


DUAL - Manual Powder Coating Equipment
COLO-800D-2
DUAL-Powder coating equipment specially designed for online powder coating plant
Two smart trackers for two panels.
• Two individual control panels housed two racks.
• Operate Two powder coating guns (corona o) simultaneously from two separate control panels.
• Powder feeding though the same hopper to assure uniformity in powder feeding.
• Individual powder and KV setting for each system.
• Approved as per the European CE regulations
Device parameters:

Electronic Controller
Pneumatic Controllers
Electrostatic powder spray gun
Input Voltage
Single-phase:200-240V
Solenoid valve control voltage
24DC
Input
18VPP
Input power
50VA
Input pressure
10KGF/OM2
Voltage Frequency
Around 25KHZ
Input
18VPP
Output pressure
0~8KGF/CM
Input Current
1.2A
Voltage Frequency
20KHZ
Around 25KHZ
Output Voltage
0~100KV DC
Input Current
Around 7.2A
Cable
5M
Cable
4M
Weight
Around 530G
Solenoid valve control voltage
24V DC
Safety Standards
1P54
Packing Size
117*73*79CM
Output powder volume
About 600G/MIN

You could also buy the booth and oven together.
BOOTH:
double systems electrostatic powder spray gun
The powder booth is one of the most critical components of the product finishing process
For COLO-S-02,The description as follow:
L1600×W1000×H1900
Body material δ=1.2mm cold plate, fold. with a powder hopper
Fliter number 2pcs/set Flither
sizeφ325×900 fast-loading
Recycling fan1/set 4-72-2.8A   1.5KW
Electrostatic powder spraying booth
1,Full automatic control
2,Small area occupation
3,Low energy consumption
4,size is customize
5,Pulse valves and solenoids
6,Primary filter module: cartridge type
include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.
powderspray booth is an economical solution for basic powder coatingoperations requiring reclaim capability in continuous productionsituations.
For job shops, first-time powder coaters and to suppliment large in-house powder coating operations,this powder spray booths offer a variety of configuration options.
Booths size could Custom designed,Manual and automatic spray stations are also available.Other features include:
Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor
Low-profile booth base eliminates operator platforms
Requires only quick, easy conncet electrical and pneumatics to start production .
Fan motor is 1.5KW-5.5KW.
Duringoperation overspray powder accumulates on the cartridge filters. As thecartridge filters load, airflow decreases and the negative pressurerises within the air handler. A timer activates a system of air purgingvalves that clear the cartridge filters of the accumulated powder toensure maximum flitter life.

OVEN:
double systems electrostatic powder spray gun

Powder Curing Ovens

The board of Oven body (Outside)δ =1.2mm carbon Steel, Inside δ =1.2mm Zinc,
The thickness of Cotton insulation is 100mm.

Heating system of Mini Powder Curing Ovens

Use Stainless Steel Electric heating tube to heat, power is 27KW, With High temperature heat
resistance Circulating fan Blast /return

air systems, Smoke pipe, All useδ =1.2mm Zinc-plaed board, there is Regulator of air volume in
the output of blast/return air system, to make the temperature of oven uniform.


Electrical System of automatic temperature control

Trolley of oven and track could supply

Curing oven

Drying oven

High tempeture powder coating oven

Produced by the customer's request.
