powder coating equipemt manufacturers in China

Payment Terms: T/T,WU,
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: colo-660
Production Capacity: 500pieces per month
Delivery Date: 3-5days
Raw Material: Others
Extra Services: Painting / Powder Coating
Certification: CE
TYPE: intelligent
Frequency: 50HZ
Gun weight: 500G
Input voltage: 200kv
Maximum output voltage: 0-100KV ( adjustable)
Means of Transport: Ocean,Air,
Packing: wood box or carton box
Power: Others
Machine Type: Others
Automation: Manual
Brand Name: COLO
Power range: 200v
Temperature range in use: -10 ℃+50 ℃
Rated output voltage: 24VDC
Maximum output current: 180Ua(max)
Maximum input-air pressure: 10kg/cm2

Intelligent Manual Powder Coating Machine COLO-660

1,powder coating system
2,0-100KV adjustable
3,CE
5,With three setting program,for flat shape,complicated,recoat shape
Portable Intelligent with 120gram cup for testing and laboratory use Manual Powder Coating Machine COLO-660T-C
660 Series Features and Specifications:
0-100 Digital Adjustable KV
Fully Adjustable Amperage
Pulse Power Technology for beating Faraday Cage Effect.
Able to cut Pulse Power on and off
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hope Feed
Because this system was designed with the Pulse Power Built in its
Electronics it is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.

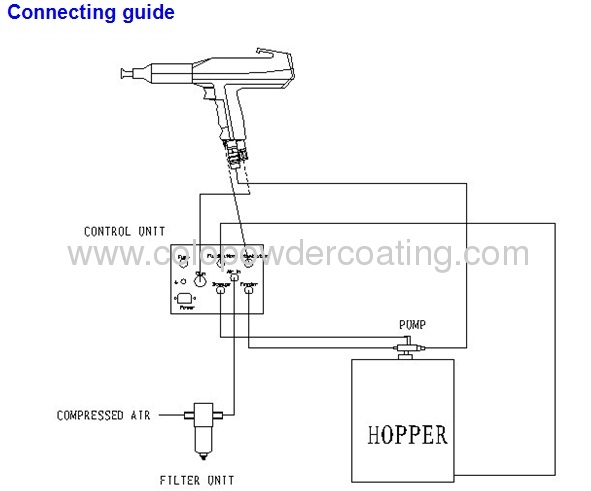

Manual coating equipment Function description
the powder gun through the powder hose . The powder is electrostatically
charged at the nozzle of the gun. In addition, an electrostatic field is
created between the gun nozzle and the grounded object. The charged
powder spray remains adhered to the surface of the object.
The powder is fluidized by air forced through a porous plastic plate from
below. The powder acquires, thereby, fluid-like characteristics.
The conveying air, supplementary air, and rinsing air are set on the control
Unit
Include
A control unit power supply cable
- A air filter
- A fluidized powder hopper
- An manual cup powder gun with gun cable, powder
hose, rinsing air hose and standard nozzle set.
- Pneumatic hoses for conveying air (red), supplementary
air (black) and fluidizing air (black)
Ground wire
AIR BLOW GUN
Electrical data
Mains input voltage: 220V/110V
Operating frequency: 50Hz /60Hz
Powder: 50W
Output voltage (to the gun): 0-100KV ( adjustable)
Maximum output current (to the gun): 180UA(max)
Protection type: IP54
Approvals: CE Certification
Pneumatical data
Input pressure: Min. 6 bar(87PSI)/max. 10 bar(145PSI)
Recommended input pressure: 7 bar(101.5PSI)
Max. Water vapor content of the compressed
Air 1.3 G/m 3;
Max. Oil vapor content of the compressed air 0.1 mg/m3;
Packing Dimensions
Length: 44cm
Width: 44cm
Height: 56cm
Weight: 12 kgs.
