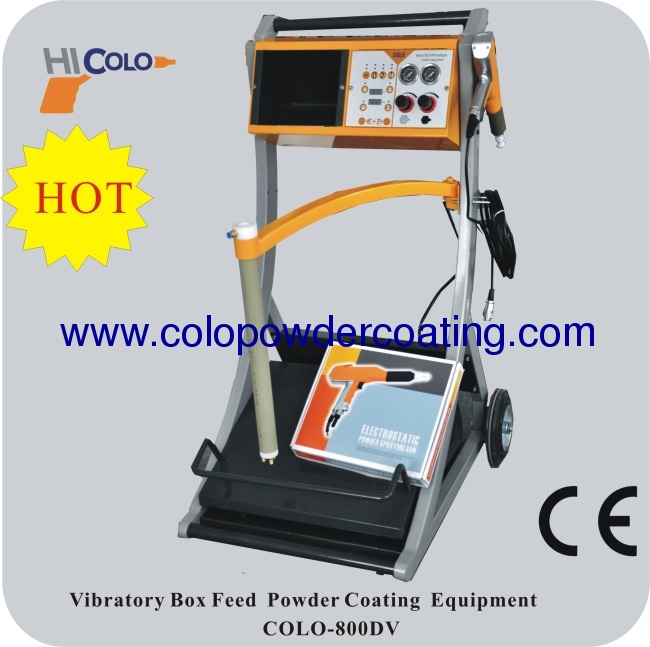

Box feed Intelligent manual powder coating mahine

Price: 900.0~1500.0 USD
Payment Terms: T/T,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: colo-800D-V-2
Production Capacity: 5000 sets/year
Delivery Date: 2-10 days
type: Coating Spray Gun
coating: powder coating
Material / Metal: Steel,all metallic surface
Power(W): 50w
After-sales Service Provided: Overseas service center ava...
Means of Transport: Ocean,Land,Air
Packing: paper carton or wooden cart...
Brand Name: COLO
weight: 60KGS
Dimension(L*W*H): 118CM*79CM*73CM
Voltage: 220v/110v
Certification: CE/ISO
Warranty: 1year

Model: colo-800D-V-2
Intelligent Manual powder coating equipment, box feed easy to chage colors and suitable for two persons work at the same time.

Model: colo-800D-V-2
Intelligent Manual powder coating equipment, box feed easy to chage colors and suitable for two persons work at the same time.
Box Feed two controllers Intelligent manual powder coating mahine with two powder guns colo-800D-V-2

The COLO-800 series is intelligent, It is easy to operate and good for different kinds of shapes. There are three setting model, groove, plate and re-coating. Far corners and recessed parts can well be sprayed, outstanding spraying effect can be obtained for re-coating. Also could adjust the voltage and current according to the shape of workpeice when under the manual model.
Box Feed two controllers Intelligent manual powder coating mahine with two powder guns colo-800D-V-2

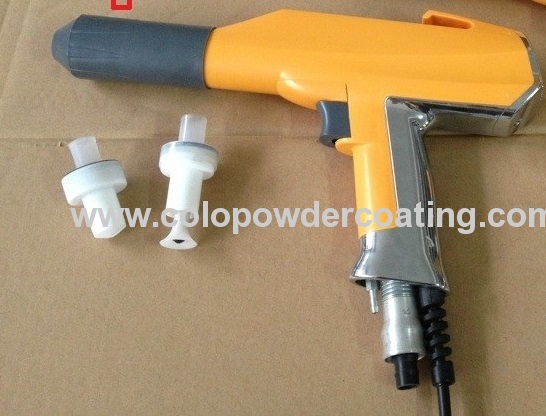

The controller and gun, red color is also OK.

Box Feed two controllers Intelligent manual powder coating mahine with two powder guns colo-800D-V-2
800D Series Features and Specifications:
0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
manualbox unit is good for quick and easy color changes,Itis designed to usethe powder manufacturer's original carton. An inclinedvibration tableallows complete emptying of the powder box via thefluidized suctiontube.
DualGun unit. Both operators each have a powder coating gun,control unitand powder injector that use powder from the same powderhopper.
Box Feed two controllers Intelligent manual powder coating mahine with two powder guns colo-800D-V-2
Manual coating equipment Function description
the powder gun through the powder hose . The powder is electrostatically
charged at the nozzle of the gun. In addition, an electrostatic field is
created between the gun nozzle and the grounded object. The charged
powder spray remains adhered to the surface of the object.
The powder is fluidized by air forced through a porous plastic plate from
below. The powder acquires, thereby, fluid-like characteristics.
The conveying air, supplementary air, and rinsing air are set on the control
Unit
Include
2control unit power supply cable
- 2air filter
- 2 air pressure regulator
- 2plug-in injector
-2 manual powder gun with gun cable, powder
hose, rinsing air hose and standard nozzle set.
- Pneumatic hoses for conveying air (red), supplementary
air (black) and fluidizing air (black)
powder hose
Ground wire
Electrical data
Mains input voltage100-240 VAC
Operating frequency50-60 Hz
Input power50W
Nominal output voltage (to the gun)max. 12 V
Nominal output current (to the gun)max. 1 A
IP54
Ambient temperature range0°C - +40°C (+32°F - +104°F)
Max. operating temperature85°C (+185°F)
ApprovalsCE
Pneumatical data
Compressed air connection1/4" male quick release
Max. input pressure10 bar / 145 psi
Min. input pressure (while unit in operation)6 bar / 87 psi
Max. water vapor content of the compressedair 1.3 g/m³
Max. oil vapor content of the compressed air0.1 mg/m³
Packing Dimensions
Length120CM
Width79CM
Height73CM
Weightapprox. 55kgs
